Four-color overlapping type synchronous belt  high speed printing machineFour-color overlapping type synchronous belt  high speed printing machine

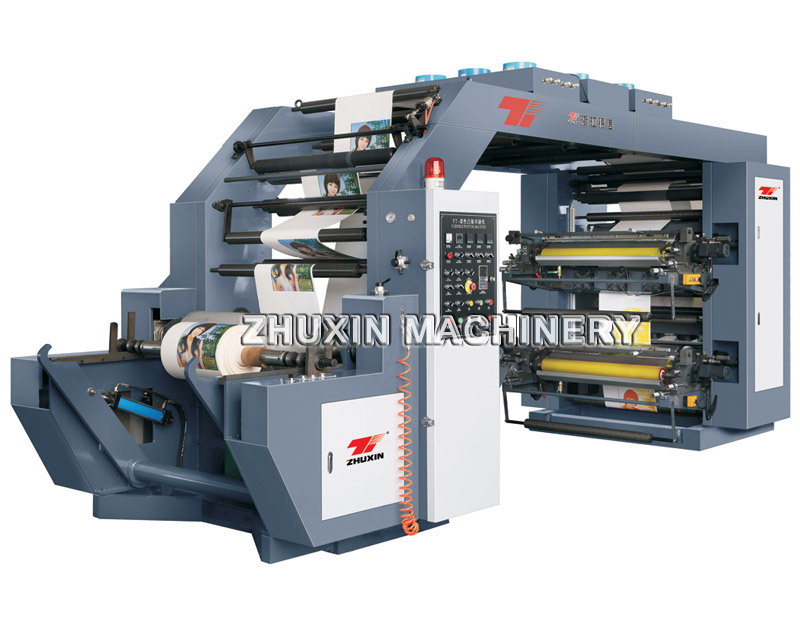

Four-color overlapping type synchronous belt high speed printing machine



Model: YT4100S

Mob: 0086 13655772222
Tel: 0086-577-63081111
Fax: 0086-577-63778011
Email: admin@zhuxin.cn admin@chinazxin.com

Four-color overlapping type synchronous belt high speed printing machine



Model: YT4100S
PRODUCT INFORMATION

1  The machine use synchronous bell working, low noise,And it can usefully control the machine on and off speed change, setting the color be accurate.
2  Machine rewinder is hydraulic and pneumatic control, and with friction winder,Make the material more tight and more smooth.
3  Machine unwinder is with EPC and hydraulic,no need lift the material by manual.
4  Machine is use hydraulic up and down. printing gear
is helical gear,
5  Machine is controlled by inverter.
6  Machine speed:120meter/min. Printing speed:8-100meters /min.

7  The machine will automatic alrm before the machine start.

<-------- Can Move Left or Right -------->

Max.Width  of Substrate

600

800

1000

Max.Printing Width (mm)

560

760

960

Printing  materials

20-350g  paper and film

20-350g  paper and film

20-350g  paper and film

Printing  Speed(m/min)

120m/min

120m/min

120m/min

Plate  thickness

1.7-3.4

1.7-3.4

1.7-3.4

Weight of  machine

4000

4500

5000

Machine  size

5.3×1.8×2.6m

5.3×2×2.6m

5.3×2.2×2.6m



<-------- Can Move Left or Right -------->
